Nexus // Customisable MIDI Hub
Add to Cart = Ships within timeframe above
Preorder = 4-6 weeks before shipping
Built for the desktop, tucked under a pedalboard, or packed for the road, the Nexus is an adaptable MIDI hub designed to connect anything, anytime. By combining 6.35mm (1/4") and 3.5mm (1/8") connectors with customisable I/O, you can work seamlessly with multiple MIDI TRS standards simultaneously. No special cable adapters required.
Nexus gives you total routing flexibility. Run two independent 1-in/5-out MIDI streams, or hit the switch to merge them into a massive single 2-in/10-out hub.
You can connect directly using standard TRS cables to gear from Chase Bliss Audio, Alexander Pedals, Strymon, Meris, Empress Effects, Jackson Audio, BOSS, Arturia, Korg, Novation, and more.

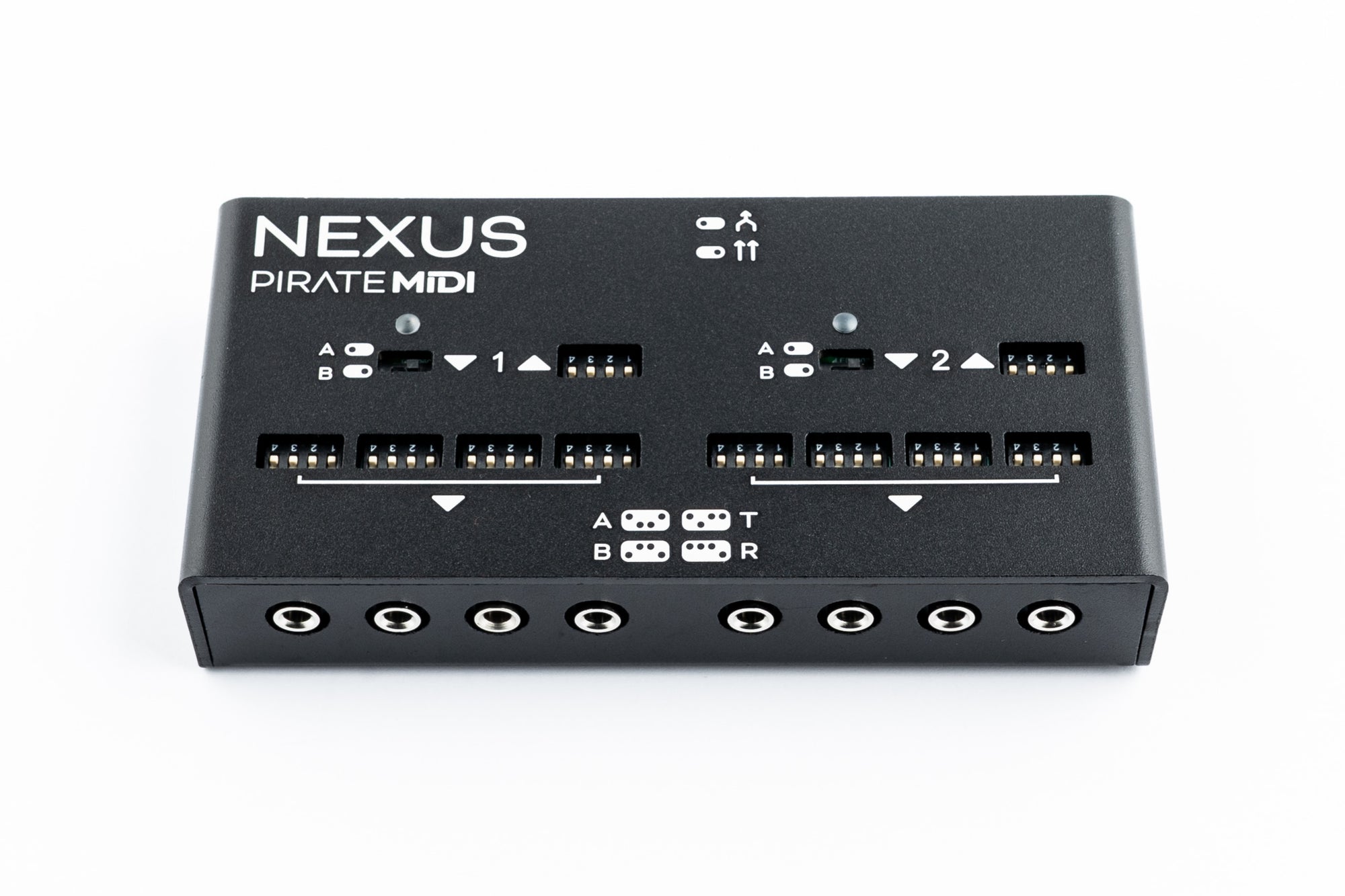

No software, no apps, no hassle. Hardware switches let you set your input and output types instantly. Dedicated MIDI activity LEDs on each input path and a printed on-device legend ensure you always know your signal status at a glance.
View User Documentation Here
| Feature | Specification |
| Inputs | 2x 6.35mm (1/4")Â Switchable Type A or Type B |
| Outputs | 2x 6.35mm (1/4") & 8x 3.5mm (1/8") Switchable Type A, Type B, Tip Active, or Ring Active |
| Routing | Merge switch to operate as two isolated 1-in/5-out streams, or one merged 2-in/10-out hub |
| Hardware Details | Opto-isolated inputs, input path activity LEDs, printed on-device TRS legend |
| Power Requirement | 9V DC @ 100mA |
| Dimensions | 127mm x 68mm x 25mm |
| Weight | 370 grams |
